Overview
Benefits
Outstanding protection against wear, impact and abrasion
Rapid return to service after application

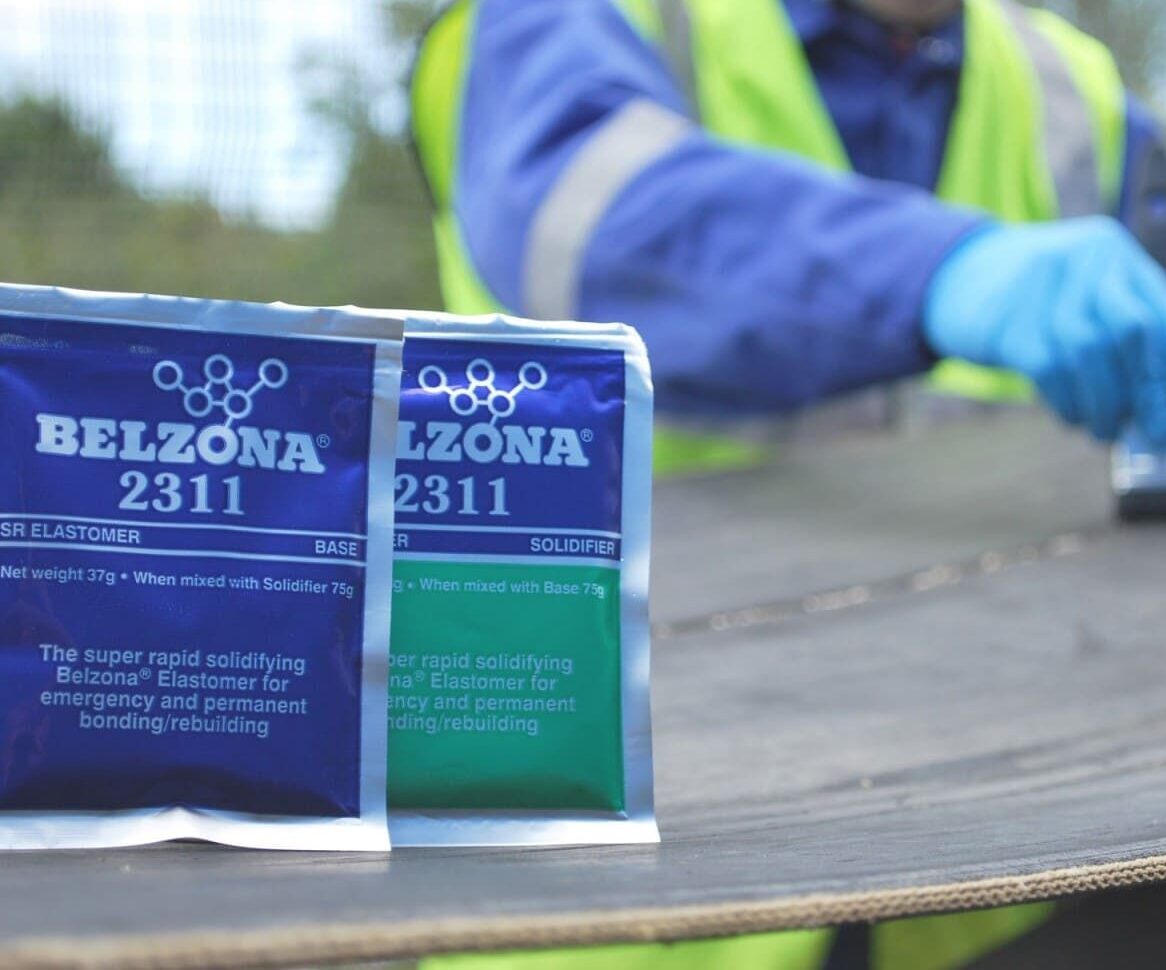

Pocket-sized sealed sachets for fast field deployment with no waste
Bonds to natural rubber, nitrile, neoprene, SBR, polyurethane, PVC, steel, copper and concrete
Outstanding resistance to a wide range of chemicals
Outstanding elongation enabling flexibility for moving and dynamic surfaces
Applications
For use in rapid repairs and temporary/permanent repair applications to minimise operational downtime.
To rectify leakage issues and maintain equipment performance.
To repair rubber surfaces subject to wear, tearing and mechanical damage.
To rectify damage to rubber-coated surfaces and carry out protective repairs.
To carry out composite repairs by ensuring strong adhesion between metal and rubber surfaces.
Specs
| TECHNICAL DATA | ||
| Mixing ratio (base:solidifier) | 1 : 1 by volume | |
| Working life | 2 minutes at 25°C (77°F) | |
| Shelf life | 3 years | |
| Adhesion (90° peel) | Mild steel: 2,137 kg/m (119 pli) | |
| Adhesion (180° peel)*cohesive failure of substrate | Natural rubber: 250 kg/m (14 pli) | Styrene-butadiene: 250 kg/m (14 pli) |
| Volume capacity | 66.5 cm3 (4.1 in3) / 75 g | |
| Elongation | 450% after 24 hour cure at 20°C (68°F) | |
| Shore A hardness | 75 | |
| Tensile strength | 9.65 MPa (1,400 psi) | |
| Tear strength | 4,643kg/m (260 pli) | |
| Abrasion resistance – loss per 1000 cycles | H18 - 109 mm3 dry | H18 - 45 mm3 wet |
Curing Times
| CURE TIMES | ||||
| Temperature | 10°C (50°F) | 15°C (59°F) | 20°C (68°F) | 25°C (77°F) |
| No loading or immersion | 40 minutes | 30 minutes | 25 minutes | 20 minutes |
| Full mechanical or thermal loading | 2 hours | 1 ½ hours | 1 hour | 50 minutes |
| Immersion in chemicals | 1 ½ days | 1 day | 18 hours | 15 hours |
